USB Port Kit M2 Easy Installation #BG-MFM02

USB Port Kit M2 Easy Installation #BG-MFM02

Regular price ¥5,500 JPY
Regular price Sale price ¥5,500 JPY
Sale Sold out
Tax included. Shipping calculated at checkout.
High quality and versatile, easy to install splash proof USB port.


-Product Features-

  • IPX7 grade water resistance
  • The long cable specification of about 3m makes it very easy to handle.
  • Ideal for installation on large vehicles, etc.
  • Comes with an interrupt coupler if you want to boot from an accessory
  • Low voltage protection: Automatically stops charging when the battery voltage on the motorcycle side, which is the main power supply, drops below 12.3V
  • Save energy: Standby power consumption when not connected to the USB port is very small at about 0.1mah
  • Since it is a USB port, it is possible to charge various devices (smartphone, drive recorder, navigation, tablet, etc.)
  • Ideal for GPS, etc. that takes power from USB
  • Reverse priority function (can be used even if + and - of wiring are wrong)
  • Since standby power is low, continuous use is possible without going through a switch.
  • Easy to grasp the current status with the indicator display
  • Produces a sturdy and solid feeling with aluminum body

●Indicator display

  • Off: Battery voltage 12.3v or less (terminal cannot be connected)
  • Blinking red: battery voltage 12.3-12.8v or less (need to start the engine or charge the original parent battery)
  • Blinking green: Battery voltage 12.8v or more (good condition)


  • Input Voltage: 12-24V
  • USB output voltage: 5V
  • Maximum current: 2A
  • Cable length: Approximately 285 cm only for the cable part (not including the connector and main body)

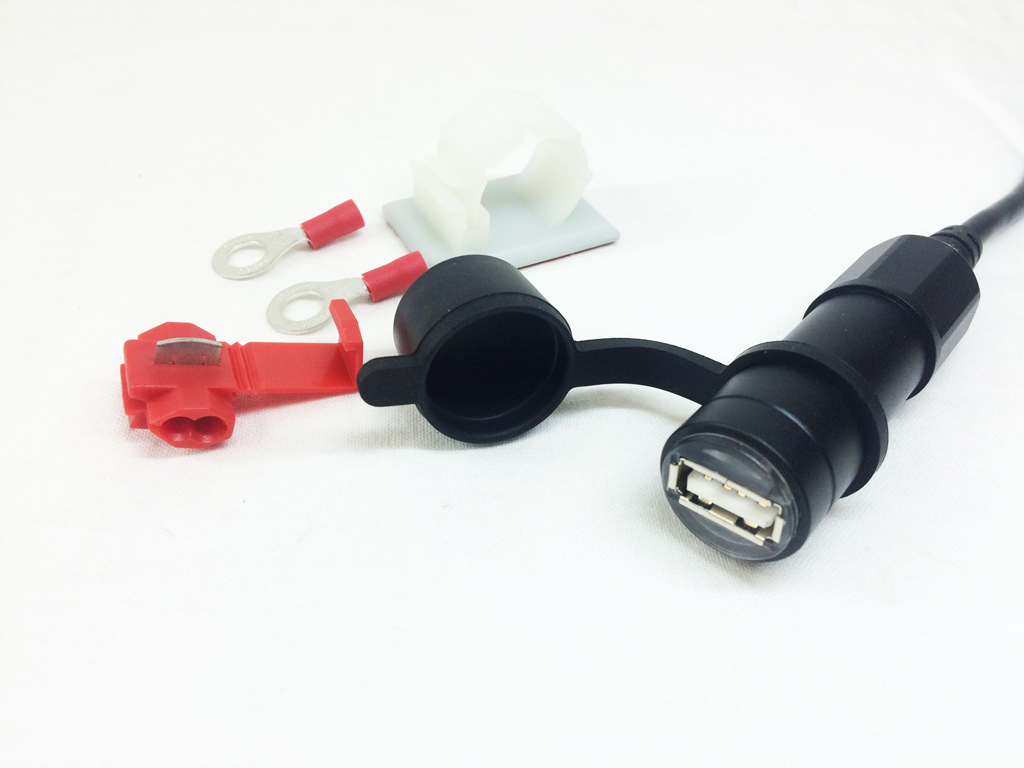

● Contents

  • M2 USB port
  • M2 USB holder
  • interrupt coupler
  • Bullet terminal x2
  • Instruction manual (in English, but very easy to understand with illustrations)


*When starting from ACC, etc., connect the USB device after confirming that the power of the main unit is turned on. Due to the protection circuit function, charging will not start when the device is connected.

*This product is splash proof. It is not waterproof but drip-proof and cannot be used in rainy weather.

*Please do not forget to attach the rubber cap when not in use.
