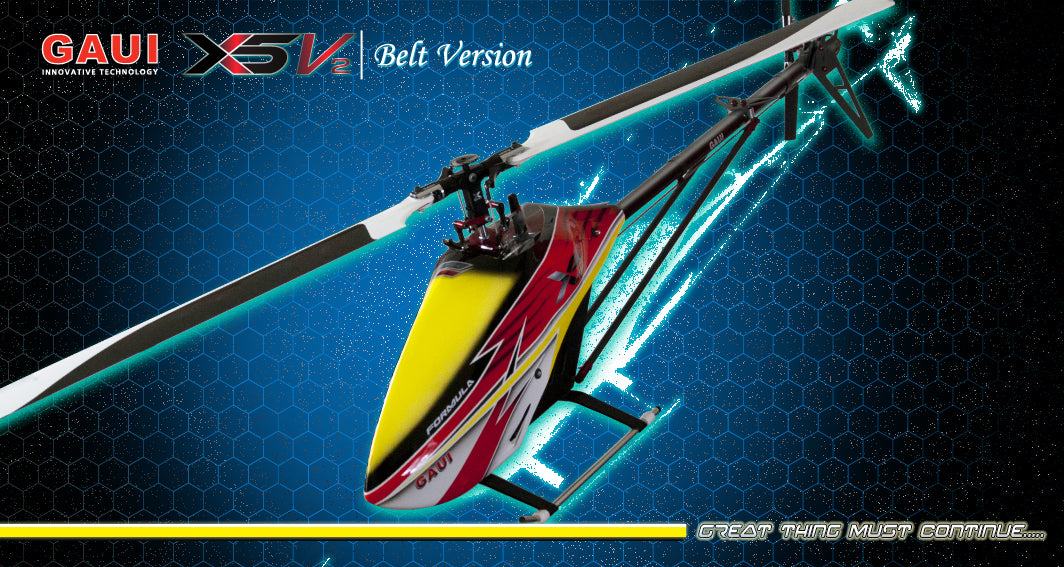

GAUI X5 V2 Basic Kit (Belt Version) #050114

-Content-

• X5 V2 Basic Kit (Belt Version)  x 1 set
• Tail Rotor Blade Set(82mm) x 1 set

-Specifications-

• Height: 336mm
• Width: 165mm
• Length (including canopy): 1000mm
• Weight: 1150g +/-3% (without battery,CF main blades,electronics)
• Main Blades: 500 ~ 520mm
• Main blade rotation diameter 1120mm
• Tail blade: 82mm
• Tail rotation diameter: 230mm
• Power System recommendation: Motor: 910kV,ESC: 100A
• Flight time: 4~5minutes

-Required for operation-

• Transmitter(6-channel or more,helicopter system)
• Receiver(6-channel or more)
• LiPo Battery: 6S1P(22.2v/ Max size:61x49x150mm)
• ESC: 100A+ ESC recommended
• Motor: 910kV
• Flybarless System x1 pc
• CCPM Servo x 3pcs
• Tail Specialized Servo x 1pc

-Tools and Equipment for Assembly-

• 1.5 mm Hexagon Screw Driver
• 2 mm Hexagon Screw Driver
• 2.5 mm Hexagon Screw Driver
• Philips Screw Driver
• Lubricant / one-way bearing grease
• Spring calipers, Needle-nosed pliers
• General thread lock
